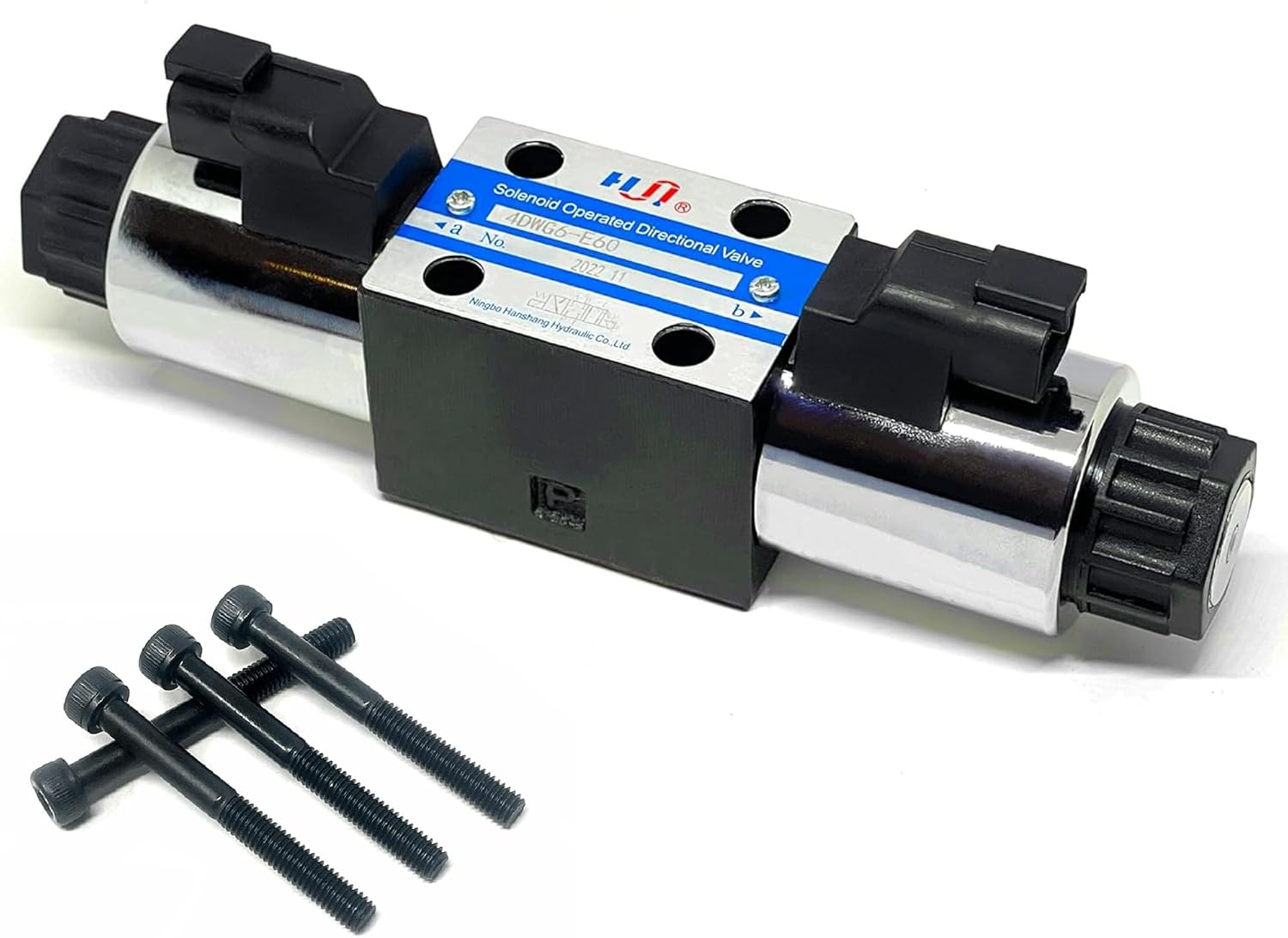

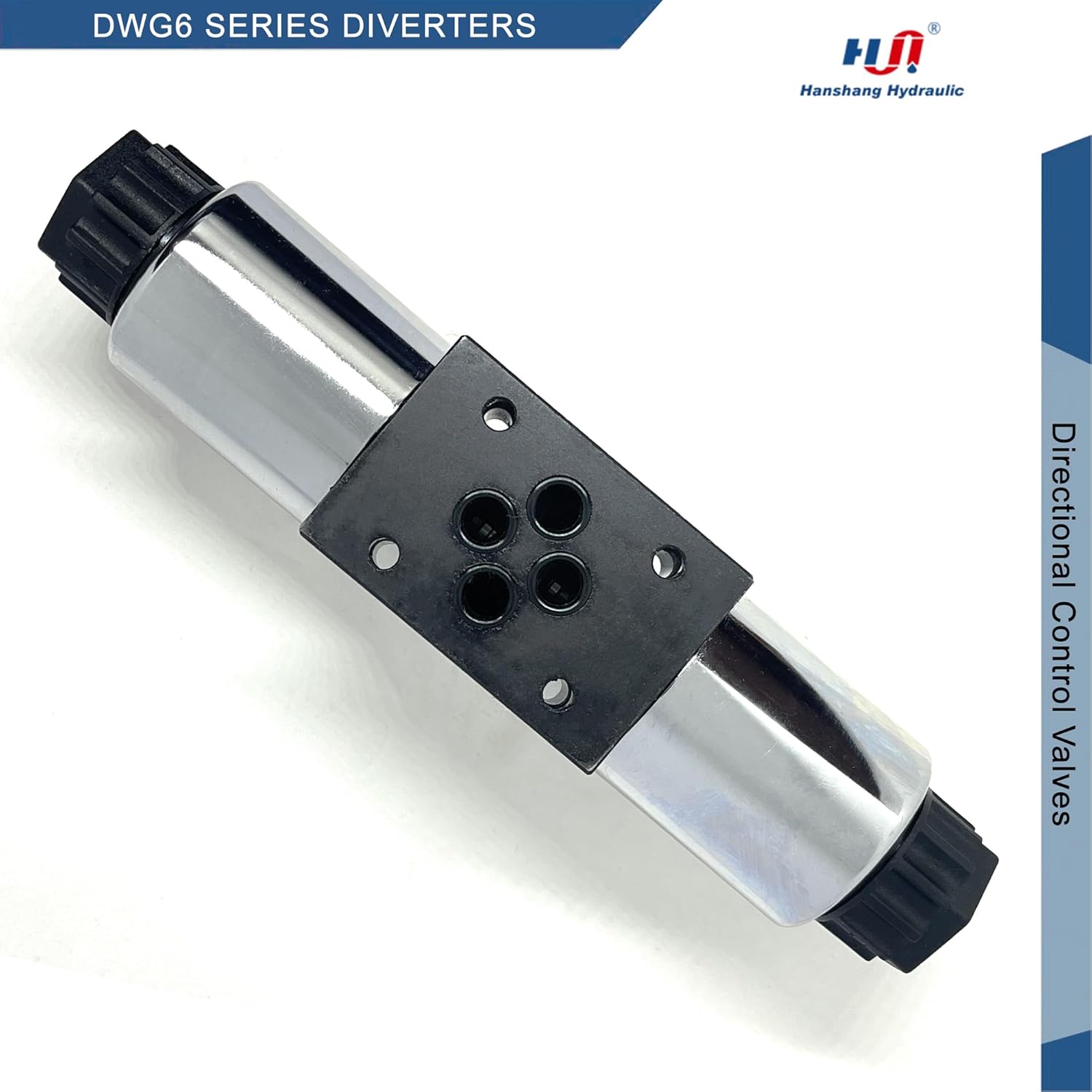

Hydraulic Valve Directional Control Electric Solenoid D03 (NG6) Size-6 3-Position 4-Ports 2-Pin 4-Way (Size 6, AC 110V)
4.5 (49 items)
Limited Time SaleUS$71.92 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221431312 | Release Date | 2026/05/03 | List Price | US$47.95 | Model Number | 221431312 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Size: 6, Max.flow rate(L/min): 60 L/min, Voltage: AC 110V Series 60 Solenoid Coil
- Designed for use in mobile, industrial, automation, and construction equipment.
- Compatible with sub-plate or manifold series NG6 or D03.
- Operating pressure(MPa): A/B/P oil port 31.5 MPa, T oil port 16 MPa, Solenoid Power: DC – 30 watts, AC – 50VA (220VA inrush).
- Weight Single Head: Without Handle 1.6 KG / With Handle 2.2 KG, Weight Double Head: Without Handle 2.2 KG / With Handle 2.8 KG
- Valve body(Material)Surface treatment: casting phosphating surface
- Replacemnts for other manufacturers' DSG DGV-3 D03S-2 4WE6 VSD03M RPE3 Q03 SWH-G02 with same symbol ( please verify spool type symbol, power connector type and voltage before purchasing )
| UPC | 811129033585 |
|---|---|
| Size | E Spool, AC 110V |
| Brand Name | Hanshang Hydraulic |
| Unit Count | 1.0 Count |
| Valve Type | Electric Hydraulic Directional Control Solenoid Valve |
| Thread Size | 1/2 |
| Thread Type | NPT |
| Manufacturer | Hanshang Hydraulic |
| Model Number | 4DWG6-E60/AC110NZ5L |
| Connector Type | Plug |
| Exterior Finish | Stainless Steel |
| Item Dimensions | 9 x 2 x 3 inches |
| Number of Ports | 4 |
| Maximum Pressure | 315 Bars |
| Inlet Connection Size | 1.5 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 1.5 Inches |
| Outlet Connection Type | Plug |
