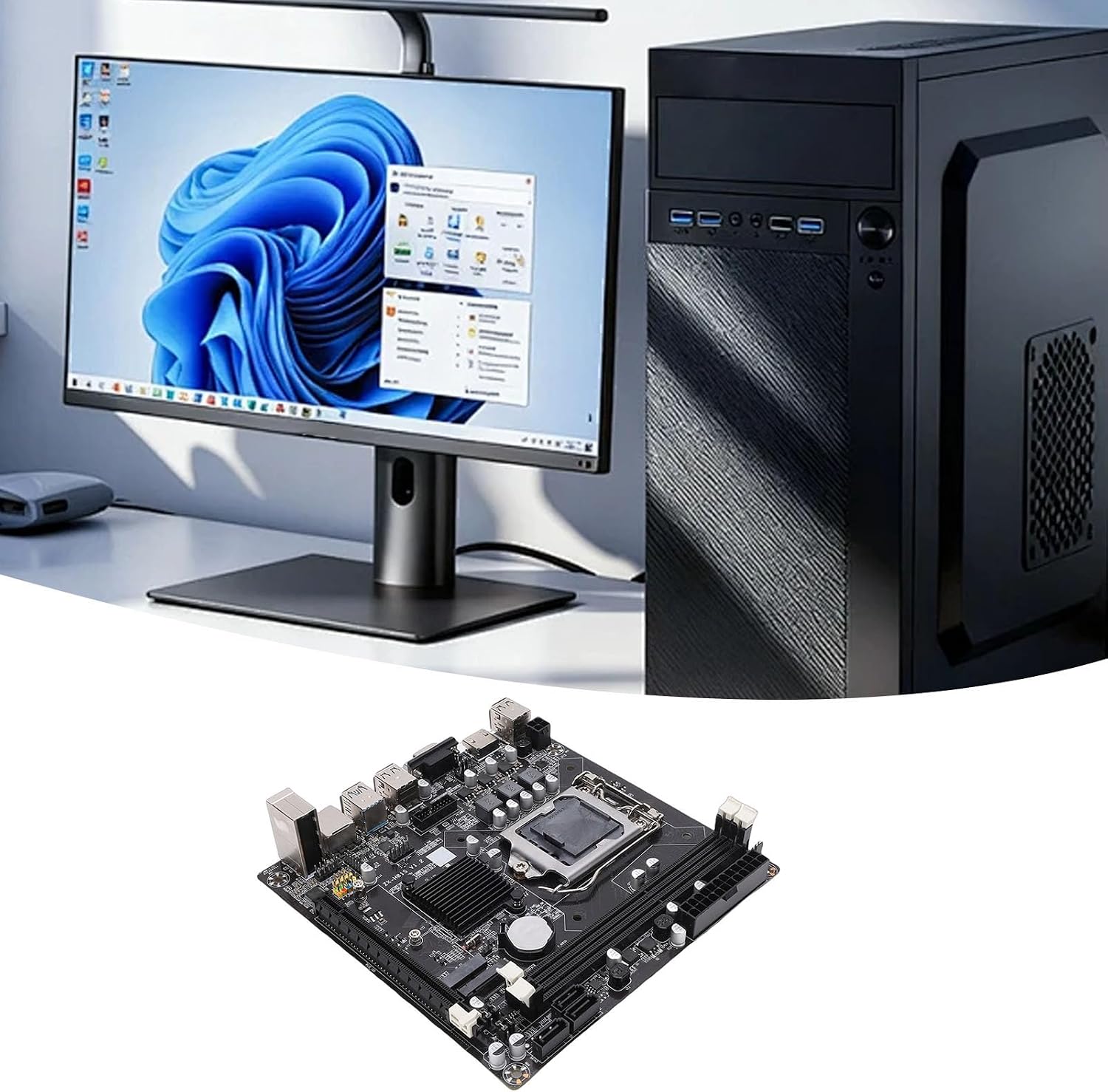

Tangxi H81 Gaming Motherboard, Mini ITX Computer Motherboard, Dual Channel DDR3, LGA 1150, M.2 Nvme Hard Drive & WiFi Slot, 6Gb / s Serial ATA3.0, PCI E X16, I/O Ports

Storage and Expansion Slots: The PC motherboard has 1 Serial ATA 3.0 (6GB/s) and 2 Serial ATA 2.0 ports, allowing you to connect multiple storage devices. The expansion slots include 1 PCI Express x16 slot and 1 slot supporting M.2 NVMe interface. Specification: Item Type: Gaming Motherboard Material: PCB Battery: CR2032 (Built in) 220MAH CPU: 4th Generation Support for LGA1150, Support for 4th Generation, 5th Generation (Such As Support for Core i3 i5 i7, Support for​ E3 V3, Support for G Series) Memory: 2 x 240 Pin DDR3 SDRAM Slots; Memory Capacity Up to 16GB; Supports Dual Channel DDR3 1066 1333 1600MHz Storage: 1 Serial ATA 3.0 (6GB/s) Port, 2 Serial ATA 2.0 (3GB/s) Ports, 1 M.2 NVMe Slot Integrated Network Card: Built in Support for Realtek 10 100 1000Mbps Network Card, 1 x M.2 WiFi Expansion Slots: 1x PCI Express x16 Slot Power Supply Interface: 1 x ATXPWR 24Pin Interface, 1 x 4Pin ATX Interface Sound Parameters: Support for Realtek ALC662 HiFi Sound Independent Sound Card I/O: 4 x USB 2.0 Interfaces, 2 x USB 3.0 Interfaces, 1 x VGA Interface, 1 x HD Multimedia Interface Compatible Interface, 1 x RJ45 Interface, 1 x 3 in 1 Sound Interface (Line Input, Line Output, Microphone) Architecture: Mini ITX Architecture (17x17cm / 6.69x6.69in) How to Use: Just take out the product and it can be used. Package List: 1 x Gaming Motherboard 1 x Serial ATA Cable 1 x Bracket

• Compatibility: The H81 motherboard is designed to support for Core i3 i5 i7, support for E3 V3 series, support for Celeron G series, and support for Pentium G series 22nm CPU processors. (Eg. Support for Core i7 4790K, i7 4770, i5 4670, i5 4590, i3 4170, support for E3 1285 v3, support for Pentium G3470, support for Celeron G1830, etc.)
• Dual Channel 2x8GB DDR3 Memory Slot: The game motherboard supports two 240 pin DDR3 SDRAM desktop memory slots without buffering. It supports 2 channel effective frequencies of DDR3 1066 1333 1600 MHz. The maximum memory support is 16GB, and it features a dual channel architecture.
• PC Motherboard: The computer motherboard features a high speed M.2 NVMe hard drive and WIFI interface, fast PCIE hard drive switching and Serial ATA 3.0 (6GB/s) channels, onboard support for Realtek 10 100 1000Mbps network card and support for Realtek ALC662 HiFi sound independent sound card.
• Material: The motherboard is made of 8 layer PCB with a sturdy structure, featuring 6 phase power supply, all solid state capacitors, and meticulous construction. Moreover, the DDR3 motherboard is equipped with a 24 plus 4 pin power interface that is not prone to bending, ensuring the stable working of each circuit and extending the lifespan of the motherboard.
• I/O Interface: The computer motherboard provides a variety of I/O interfaces, including 4 USB 2.0 interfaces, 2 USB 3.0 interfaces, 1 VGA interface, 1 HD multimedia interface, 1 Gigabit RJ45 interface, and 1 3 in 1 sound interface (line input, line output, microphone).
